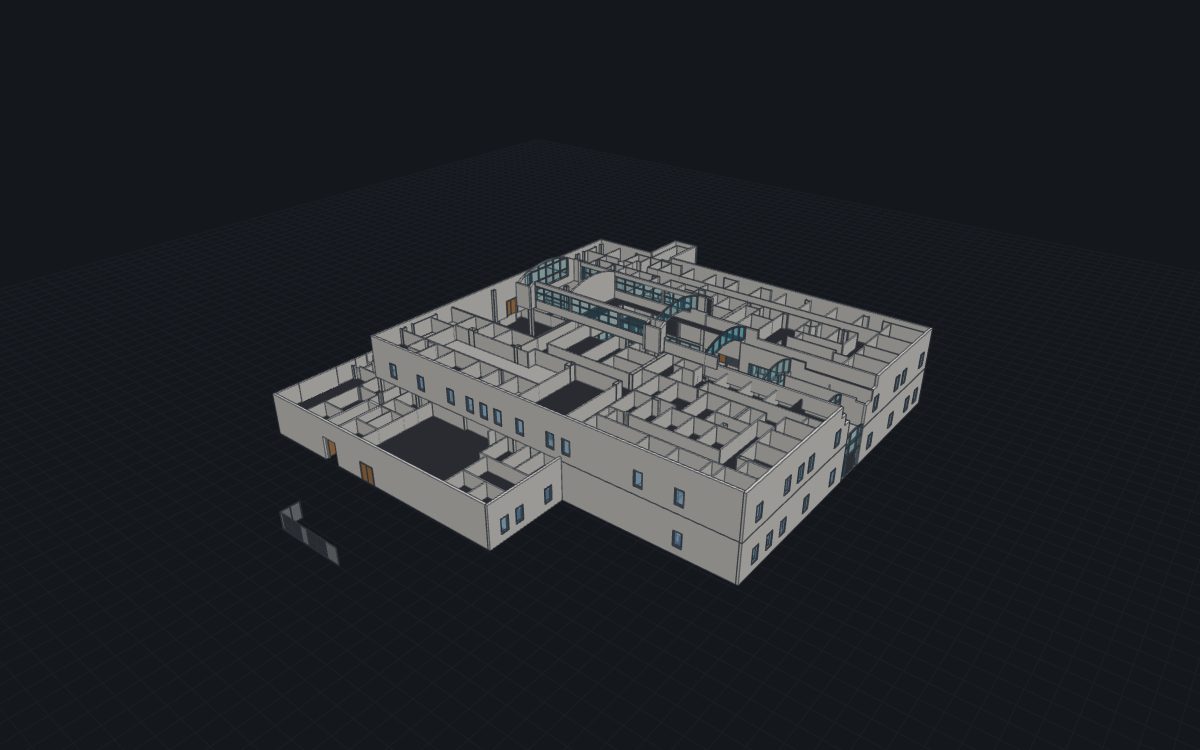

Medical-Dental Clinic
Real 2-storey clinic · Revit 2011 export, redacted
5 coordinated discipline models · CC BY 4.0
Projects
Models
5 modelsSource: BSI (2020) "Medical-Dental Test Files," buildingSMART International, github.com/buildingsmart-community/Community-Sample-Test-Files, CC BY 4.0. Files are served unchanged.

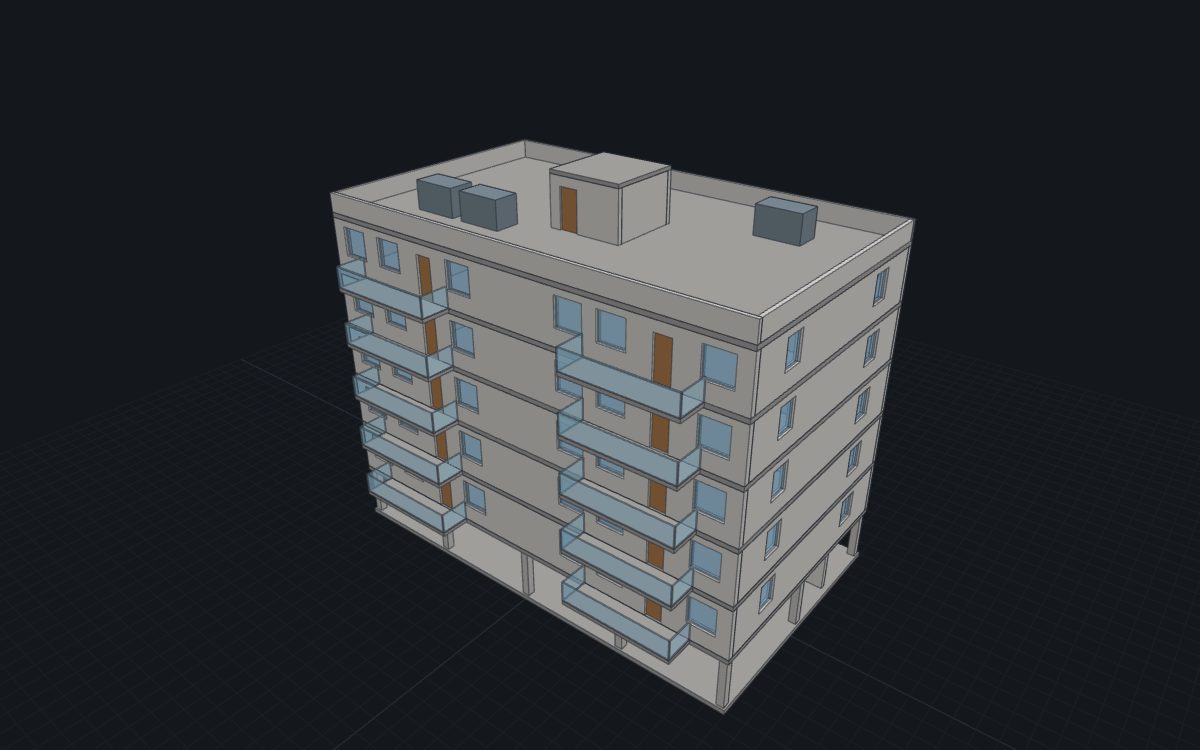

Riverside Apartments — Block B
Demo project · sample IFC4 model
Served from the demo server · opens in a few seconds
Models
1 modelDemo build. The sample building is generated with IfcOpenShell and opened with the open-source web-ifc parser, the same kind of pipeline the real app would use on its server.
——
Model tree
New issue
Opening model…
Issues
About
SiteLens is a working demo of an iPhone field app for IFC building models.
What is real here:
- The model is a genuine IFC4 file (Riverside Apartments, Block B: 6 storeys, walls, windows, doors, stairs, spaces, property sets, quantities and materials).
- It is parsed with web-ifc and drawn with three.js, both open source. Tap any element to read its real IFC data.
- "Open your own IFC file" parses a file from your phone on the device. Very large files (hundreds of MB) need the server conversion step that the production app would use.
The Medical-Dental Clinic is a real building (Revit 2011 export, redacted) with five coordinated discipline models. Source: BSI (2020) "Medical-Dental Test Files," buildingSMART International, github.com/buildingsmart-community/Community-Sample-Test-Files, licensed CC BY 4.0. The files are served unchanged.
What is mocked: the project list and accounts, QR scanning, and issue syncing. Issues are stored only in this browser.
Production plan: native SwiftUI + RealityKit app, server-side IfcOpenShell conversion, offline packages per model.
